PSTN and telephone-system calling for Microsoft Teams
PSTN and telephone-system calling for Microsoft Teams

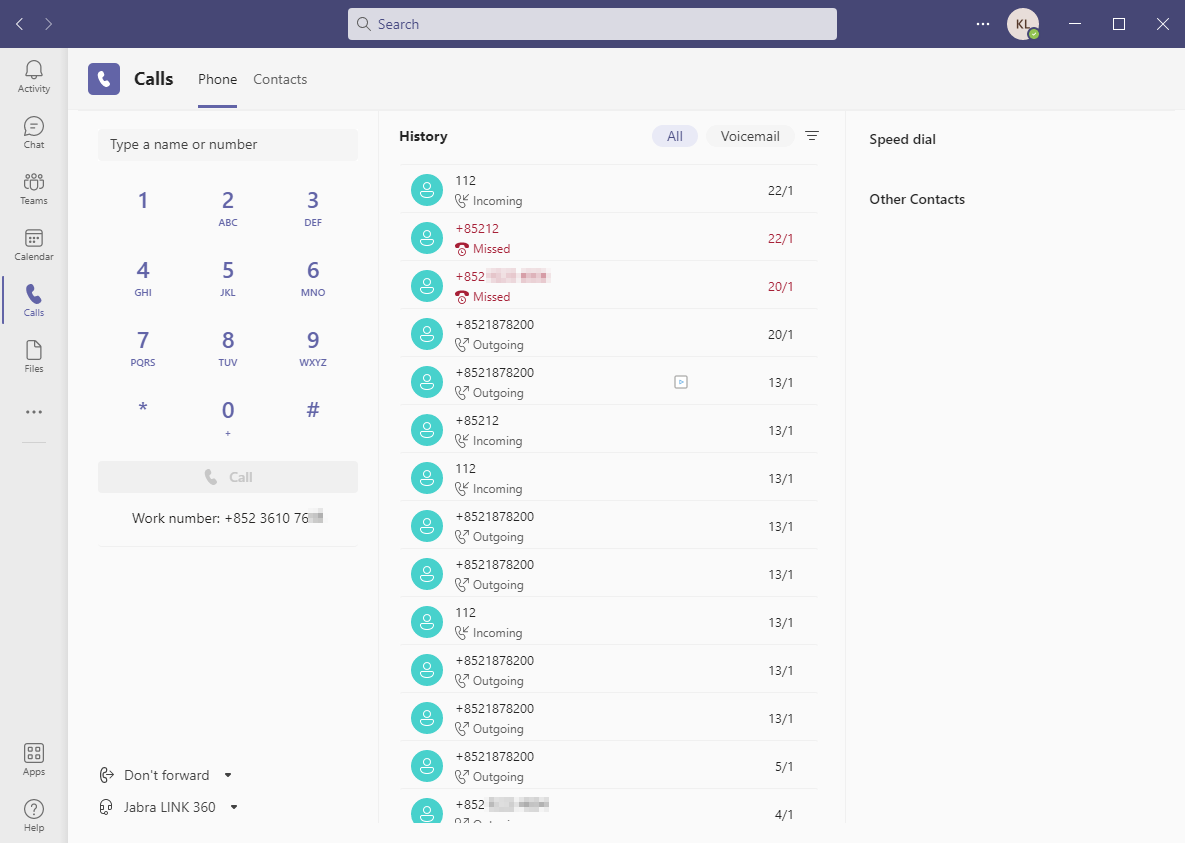

As part of the Microsoft 365 family products, Microsoft Teams provides various of features such as Chat, File Sharing, Audio/Video Calls and Online Meetings. With PLATON® CLOUD / On-Premises Teams Director, PSTN calling or even Telephone System integration is now possible with Teams, without the need of expensive equipment such as SBC or extra gateways. Users can make or receive calls, from anywhere and any device with their office phone number using Teams software, important calls will no longer missed without the need of providing personal phone number to clients.
Features of Teams Integration

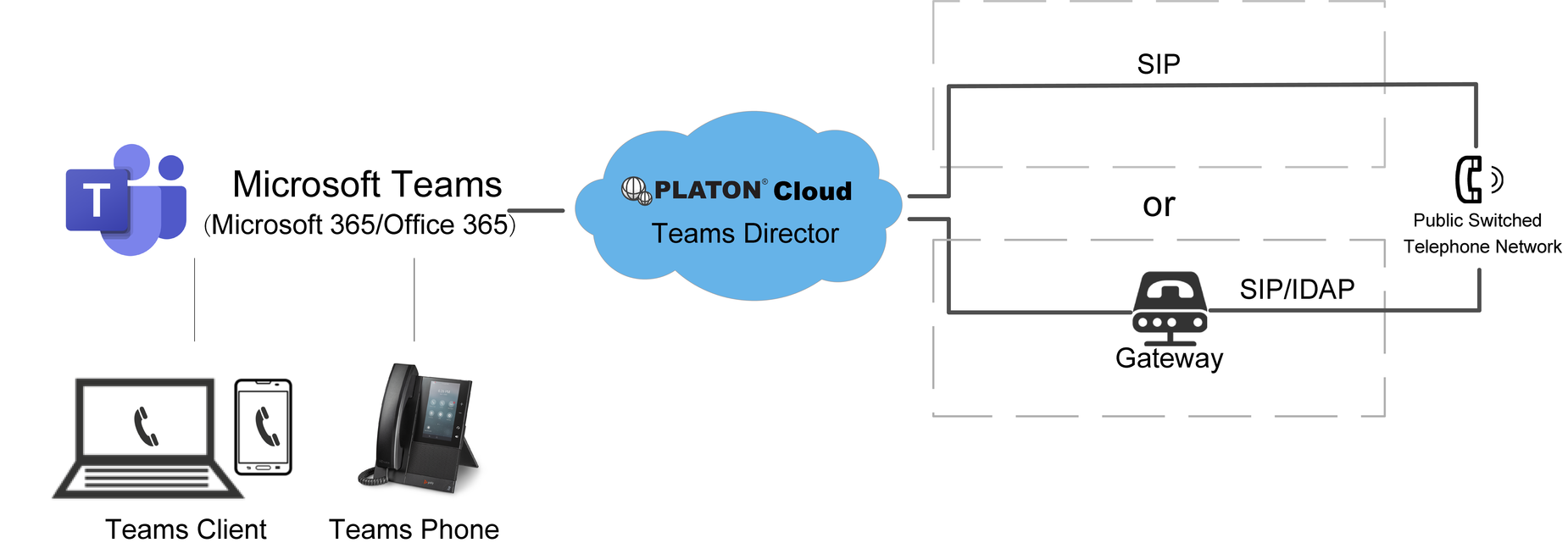

Solution A — Cloud-based Direct PSTN Connection
Solution B — Cloud-based Hybrid / Connect with Telephone System

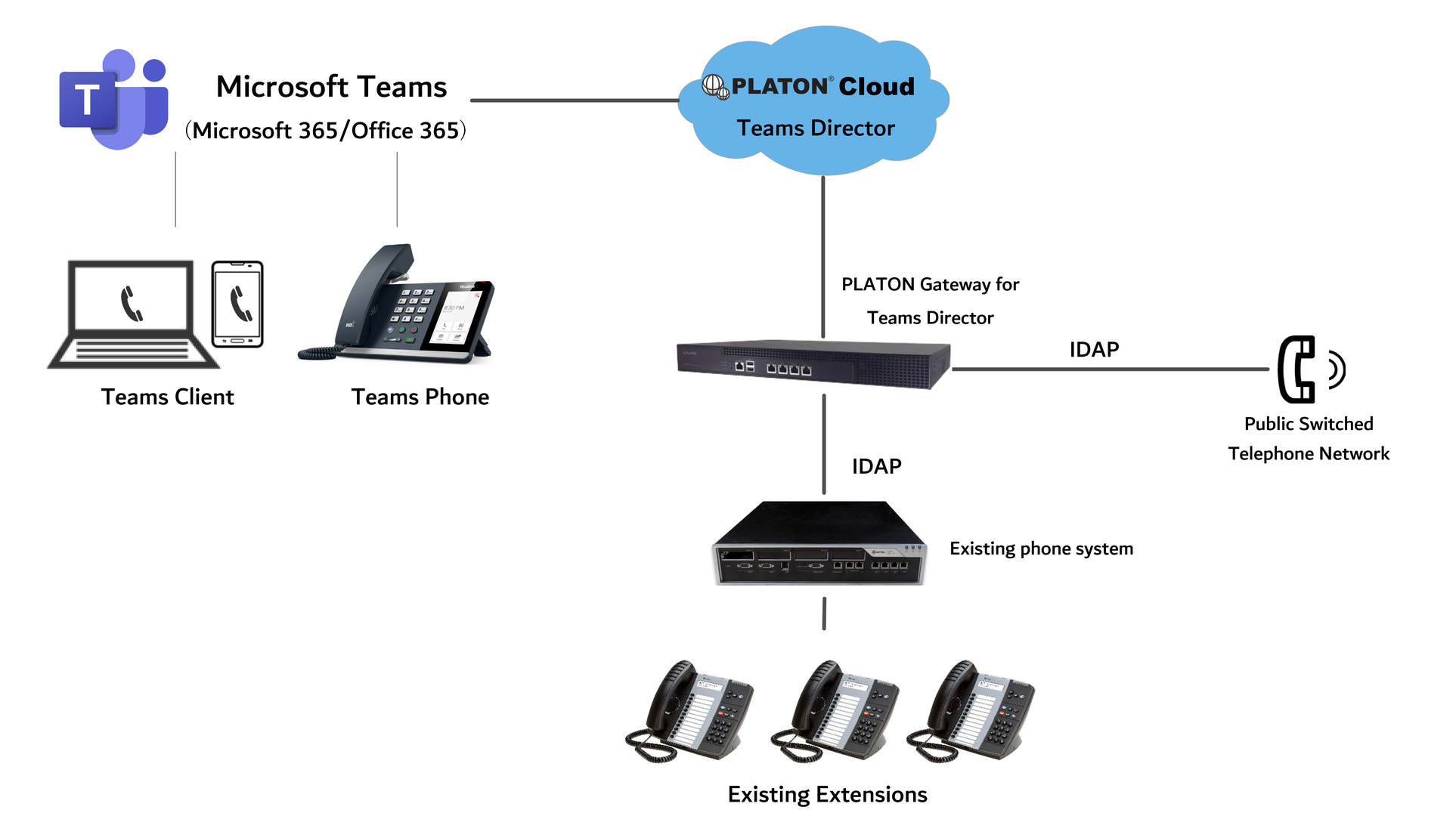

Solution C — Cloud-based Hybrid / Connect with Existing Telephone System

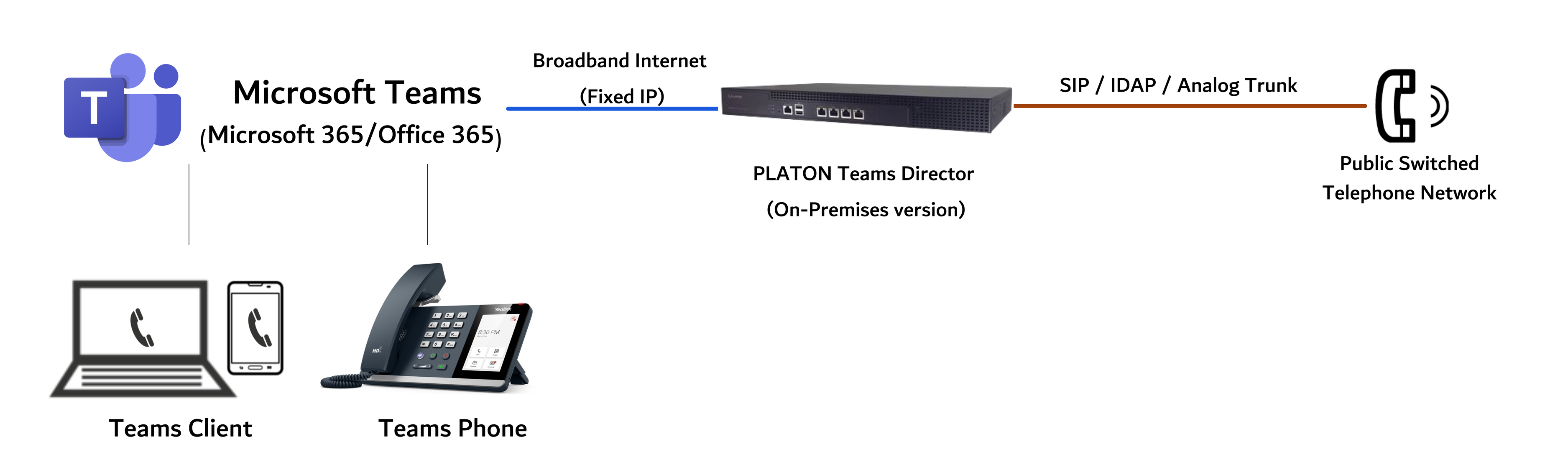

Solution D — On-Premises Connection
About PLATON® CLOUD Teams Director
- ✓Allows connecting almost any telephony trunk or telephone system equipment with Microsoft Teams Direct Routing
- ✓No authentication information is stored
- ✓Wide cloud platform choices — Amazon (AWS EC2), Microsoft Azure, Google Cloud or other cloud platform
- ✓(Optional) Add-on feature — Automatic Voice Recording
For PLATON® CLOUD Service Level Agreement details, please see the Cloud SLA page. PLATON® CLOUD SLA
Teams Director On-Premises Gateway
| TD-1200 | TD-2200 | TD-4200 | |
|---|---|---|---|
| Chassis | Compact / 19" 1U Rack Mount | 19" 1U Rack Mount | 19" 1U Rack Mount |
| Recommended Capacity | Up to 60 Users | Up to 250 Users | Up to 1000 Users |
| Max Concurrent Calls | 15 | 50 | 200 |
| PSTN Port Type | SIP | CO / IDAP (T1/E1) / SIP | CO / IDAP (T1/E1) / SIP |
| Network Ports | 4 | 6 | 8 × RJ-45 + 2 × SFP |
| Voice Recording Space (Optional) | 3,000 Hours | 13,000 Hours | 26,000 - 52,000 Hours |
| Redundant Storage | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 1 (Mirror) |
| Redundant Power Supply | — | — | Optional |
| High Availability (HA) Support | — | — | Optional |
| Input Voltage | AC 110 / 220 V | AC 110 / 220 V | AC 110 / 220 V |
| Power Supply Unit | Internal (Single) | Internal (Single) | Internal (Single/Dual) |
| Operation Temperature | 0 to 40°C | 0 to 40°C | 0 to 40°C |
| Operation Humidity | 90% non-condensing | 90% non-condensing | 90% non-condensing |
| Dimensions | 295 (W) × 175 (D) × 43 (H) mm | 440 (W) × 350 (D) × 44 (H) mm | 430 (W) × 450 (D) × 44 (H) mm |
Supported Platforms
- ✓Microsoft 365 Business Basic / Standard / Premium (with Teams Phone Standard add-on)
- ✓Microsoft 365 E3 / F1 / F3 / A1 / A3 (with Teams Phone Standard add-on)
- ✓Microsoft 365 E5 / A5
- ✓Office 365 E1 / E3 / F3 / A1 / A3 (with Teams Phone Standard add-on)
- ✓Office 365 E5 / A5
Ready to modernize your phone system?
Talk to our team about sizing, deployment options, and integration with your CRM or Microsoft Teams environment.
