IP PBX

PLATON® PBX Models

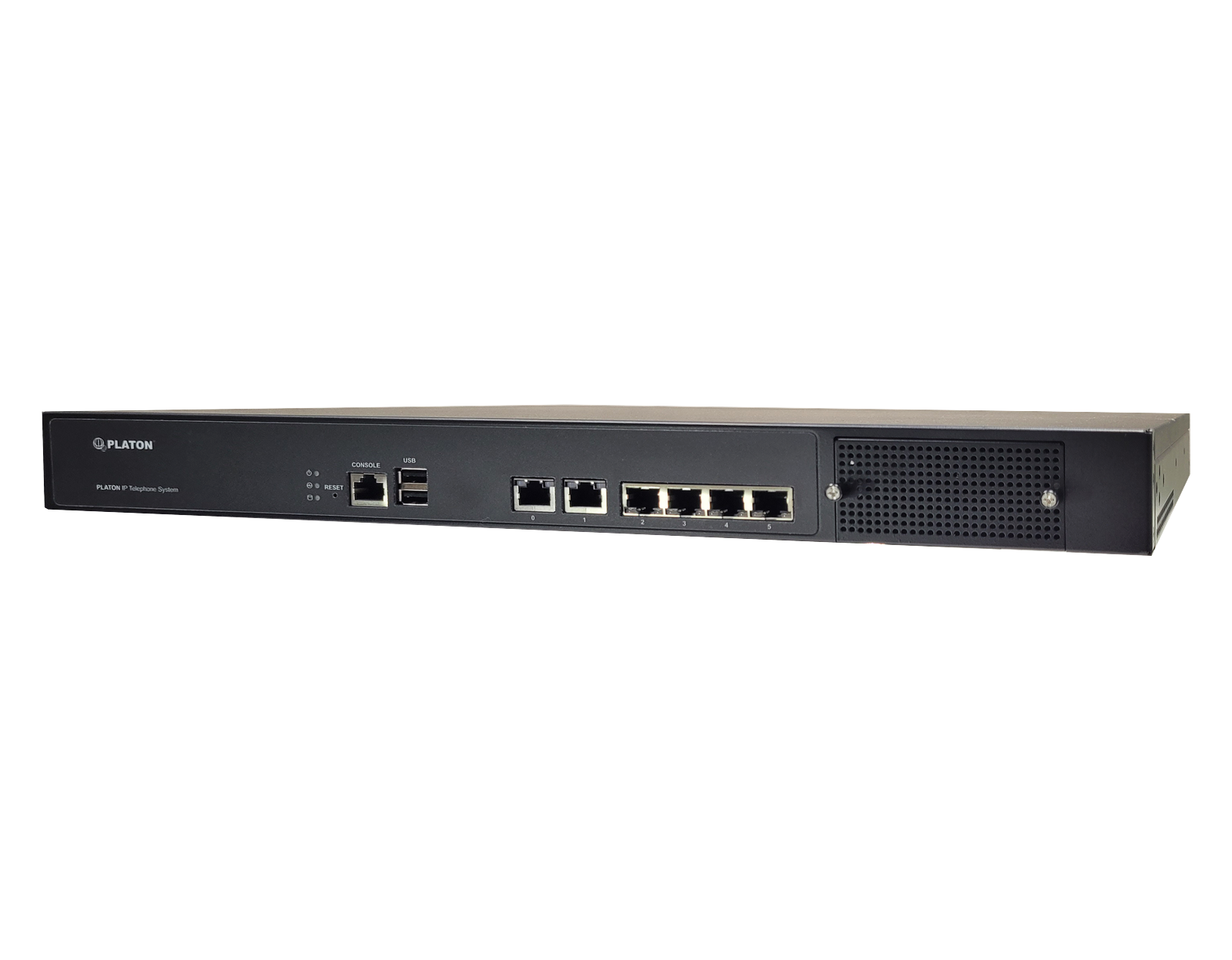

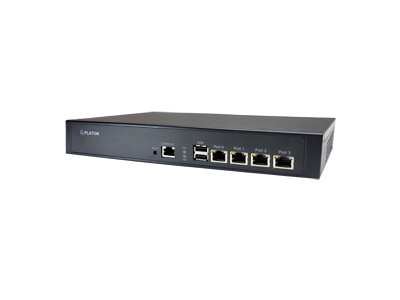

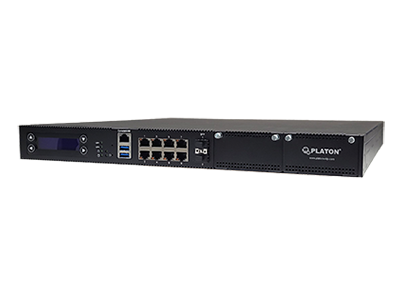

Models CS-1200 (SIP) CS-2200 V2 CS-4200 V2 Server Edition
Chassis

Compact /
19" 1U Rack Mount

19" 1U Rack Mount 19" 2U Rack Mount 19" 2U/3U Rack Mount
Recommended Capacity 25 Users 100 Users 300 Users 300-1000 Users
Max Concurrent Calls 15 50 200 500
Max. PSTN Analog Ports - 64 128 256
Max. PSTN Digital Ports - 1 8 8
PSTN Port Type SIP CO / IDAP (T1/E1) / SIP CO / IDAP (T1/E1) / SIP CO / IDAP (T1/E1) / SIP
Network Ports 4 4 4 4
Voice Recording Space 20 Hours (Voice Mail) 13,000 Hours 13,000 - 104,000 Hours 13,000 Hours or above
Redundant Storage - RAID 1 (Mirror) RAID 1 (Mirror) RAID 1 / 5 / 6
Redundant Power Supply - - - Optional
High Availability (HA) Support - - Optional Optional
Contact Center - - Max. 50 Agents Max. 500 Agents
Input Voltage AC 110 / 220 V AC 110 / 220 V AC 110 / 220 V AC 110 / 220 V
Power Supply Unit Internal Internal Internal Internal
Operation Temperature 0 to 40°C 0 to 40°C 0 to 40°C 0 to 40°C
Operation Humidity 90% non-condensing 90% non-condensing 90% non-condensing 90% non-condensing
