Teams Integration

Teams Direct Routing

As part of the Microsoft 365 family products, Microsoft Teams provides various of features such as Chat, File Sharing, Audio/Video Calls and Online Meetings.

With PLATON® CLOUD / On-Premises Teams Director, PSTN calling or even Telephone System integration is now possible with Teams, without the need of expensive equipment such as SBC or extra gateways.

Users can make or receive calls, from anywhere and any device with their office phone number using Teams software, important calls will no longer missed without the need of providing personal phone number to clients.



Features of Teams Integration

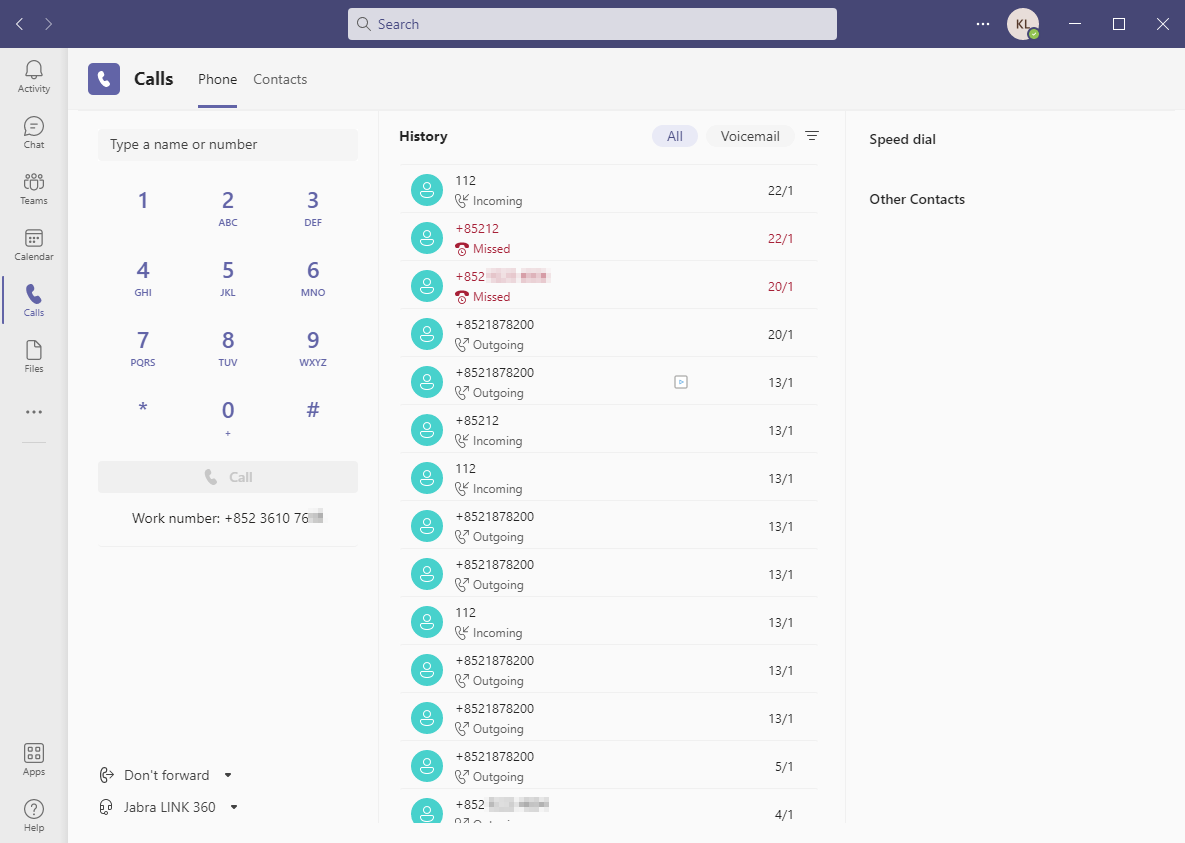

Make/Receive Calls from Microsoft Teams

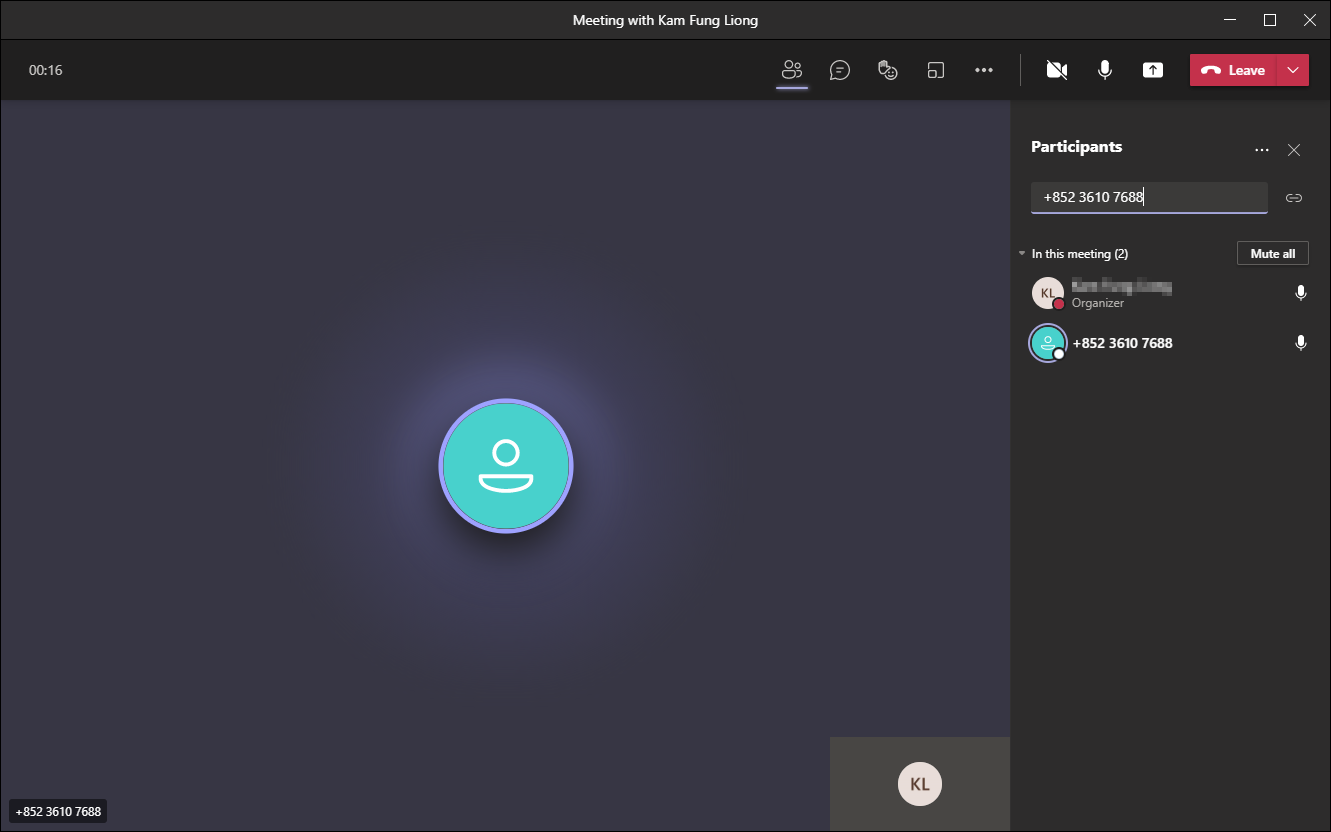

Connect anyone in Teams Meetings with their landline or mobile

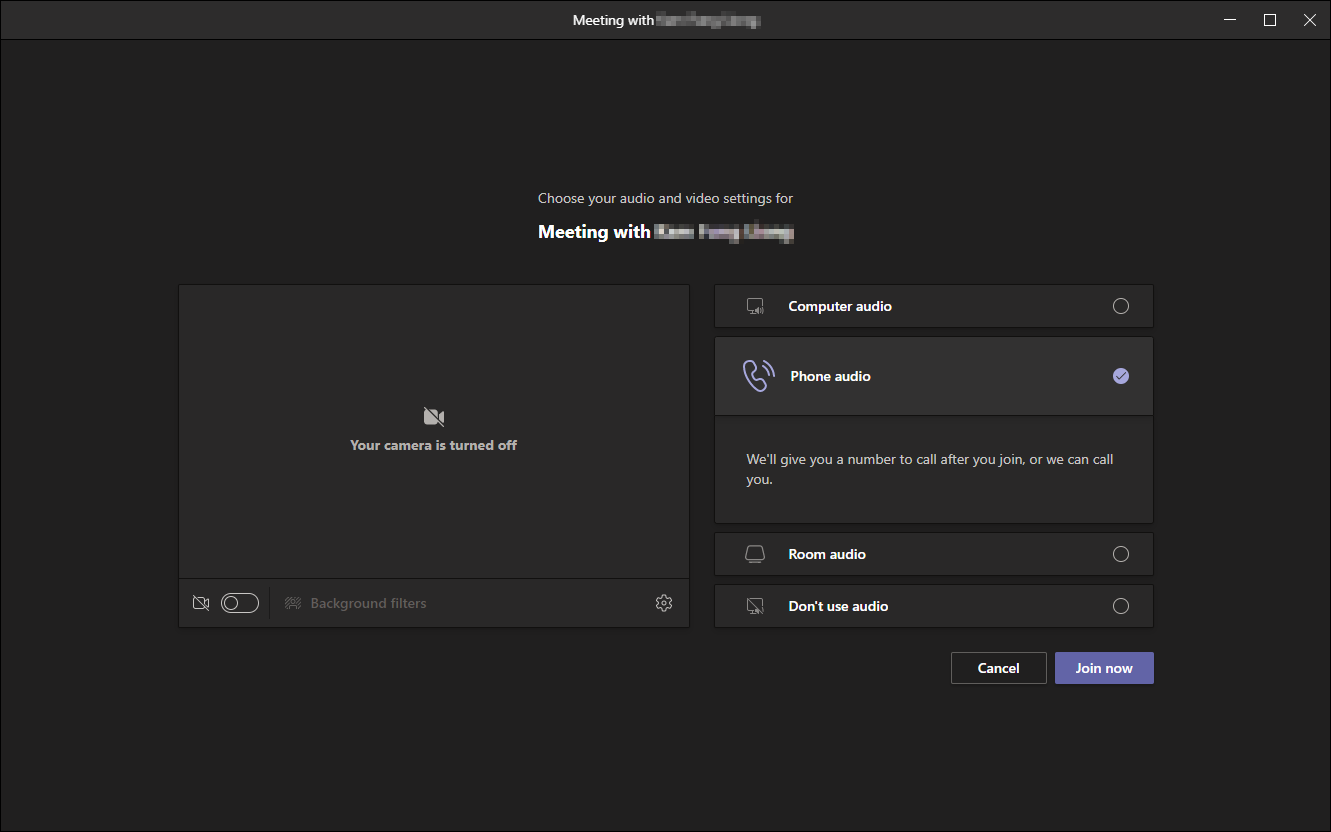

Better meeting quality by using landline/mobile connection rather than computer audio



Teams Integration Solutions

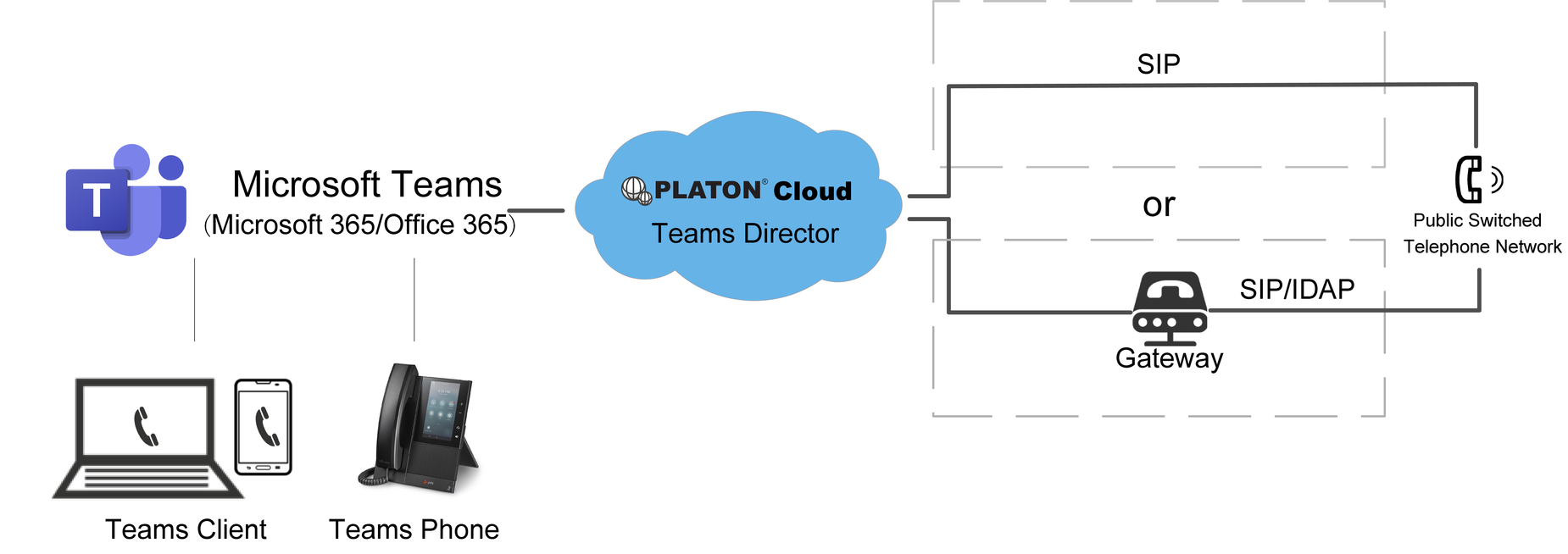

Solution A - Cloud-based Direct PSTN Connection

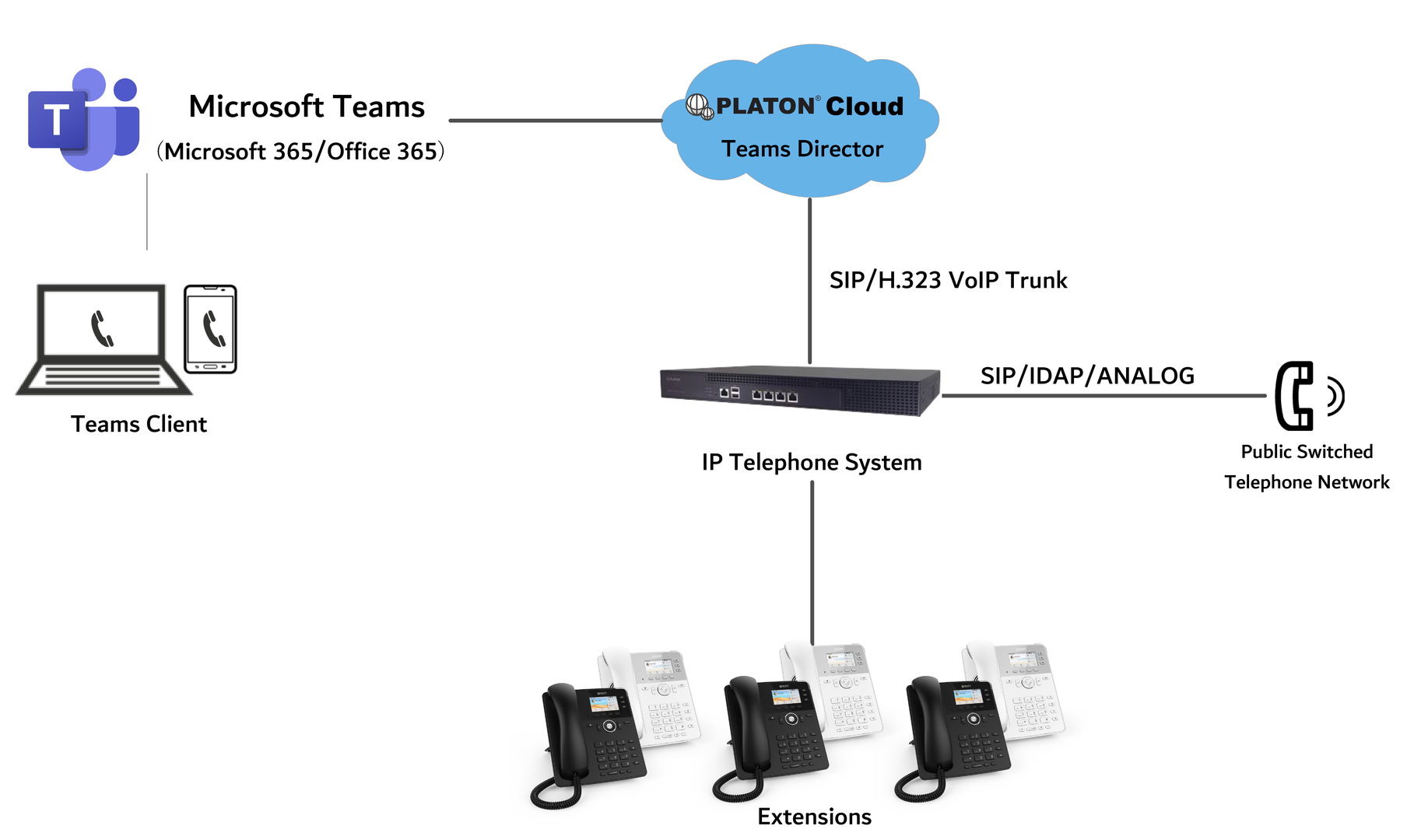

Solution B - Cloud-based Hybrid / Connect with Telephone System

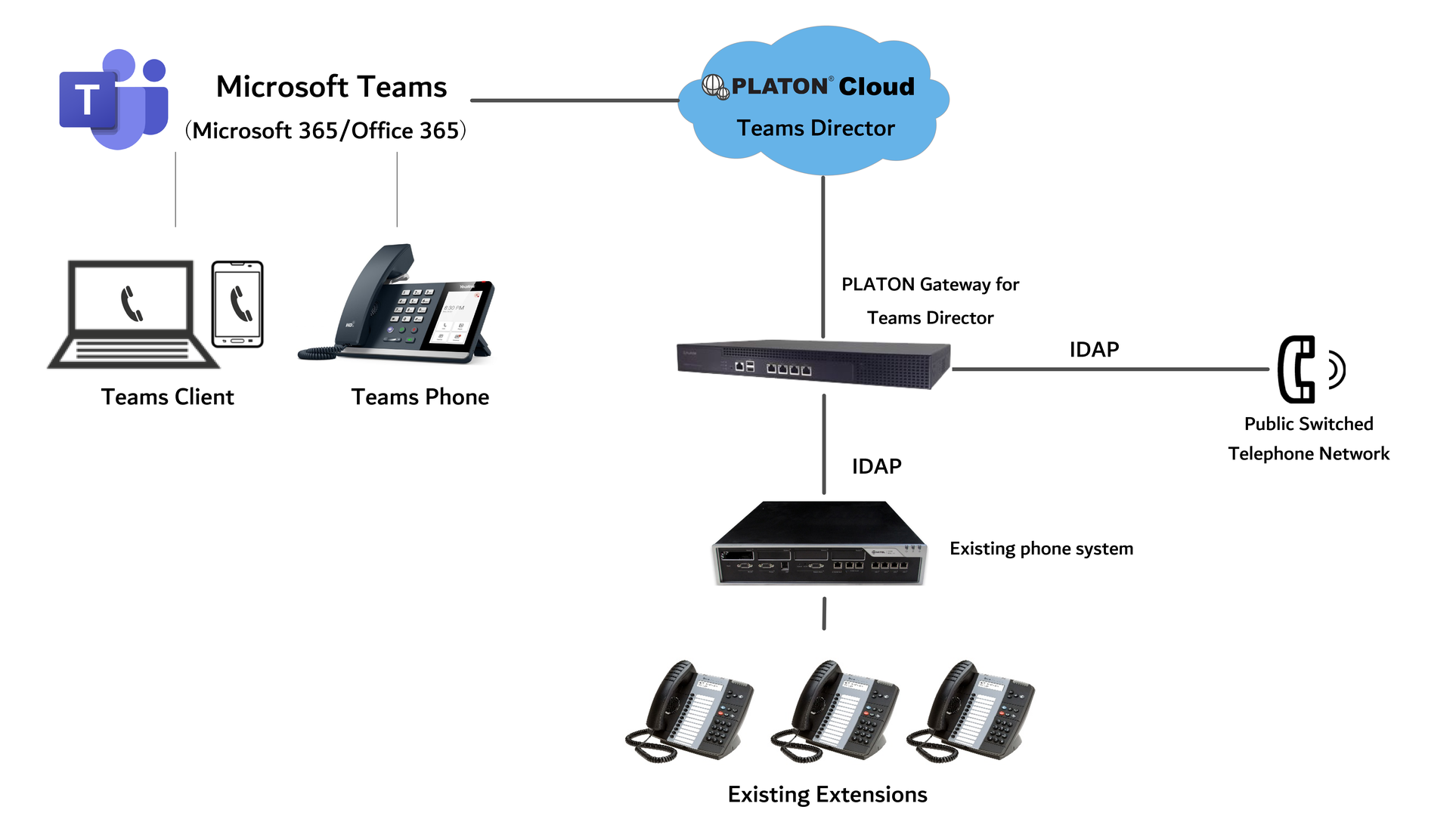

Solution C - Cloud-based Hybrid / Connect with Existing Telephone System

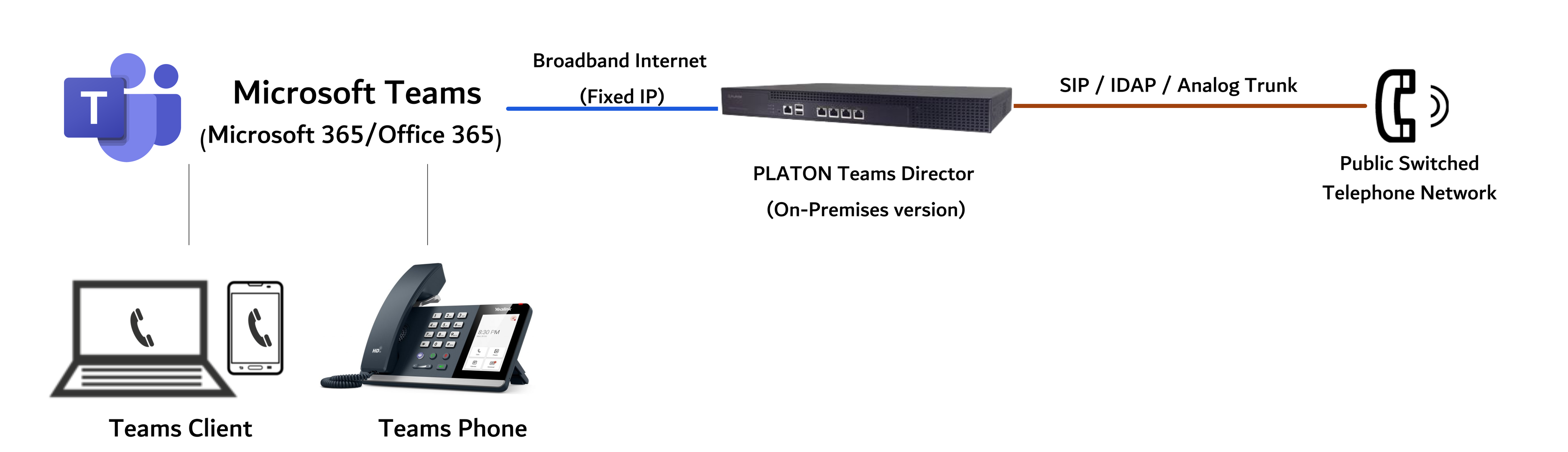

Solution D - On-Premises Connection






About PLATON® CLOUD Teams Director

Allows connecting almost any telephony trunk or telephone system equipment with Microsoft Teams Direct Routing

 No authentication information is stored

Wide cloud platform choices - Amazon (AWS EC2), Microsoft Azure, Google Cloud or other cloud platform

 (Optional) Add-on feature – Automatic Voice Recording

For PLATON® CLOUD Service Level Agreement details, please click here for details.

Teams Director On-Premises Gateway


Models TD-1200 TD-2200 TD-4200
Chassis

Compact /
19" 1U Rack Mount

 19" 1U Rack Mount 19" 1U Rack Mount
Recommended Capacity Up to 60 Users Up to 250 Users Up to 1000 Users
Max Concurrent Calls 15 50 200
PSTN Port Type SIP CO / IDAP (T1/E1) / SIP CO / IDAP (T1/E1) / SIP
Network Ports 4 6 8 x RJ-45 + 2 x SFP
Voice Recording Space (Optional) 3,000 Hours 13,000 Hours 26,000 - 52,000 Hours
Redundant Storage RAID 1 (Mirror) RAID 1 (Mirror) RAID 1 (Mirror)
Redundant Power Supply - - Optional
High Availability (HA) Support - - Optional
Input Voltage AC 110 / 220 V AC 110 / 220 V AC 110 / 220 V
Power Supply Unit Internal (Single) Internal (Single) Internal (Single/Dual)
Operation Temperature 0 to 40°C 0 to 40°C 0 to 40°C
Operation Humidity 90% non-condensing 90% non-condensing 90% non-condensing
 Dimensions 295 (W) x 175 (D) x 43 (H) mm 440 (W) x 350 (D) x 44 (H) mm 430 (W) x 450 (D) x 44 (H) mm

Supported Platforms

Microsoft 365 Business Basic / Standard / Premium (with Teams Phone Standard add-on)

 Microsoft 365 E3 / F1 / F3 / A1 / A3 (with Teams Phone Standard add-on)

 Microsoft 365 E5 / A5

 Office 365 E1 / E3 / F3 / A1 / A3 (with Teams Phone Standard add-on)

 Office 365 E5 / A5
